Mobile benches change how irrigation has to be designed. If container benches are lifted by crane or carried along conveyor tracks, there can be no fixed pipework in their way. The DGT mobile bench irrigation set is made for exactly this: the bench is moved freely, and water is connected and released by two small valves on the bench itself.

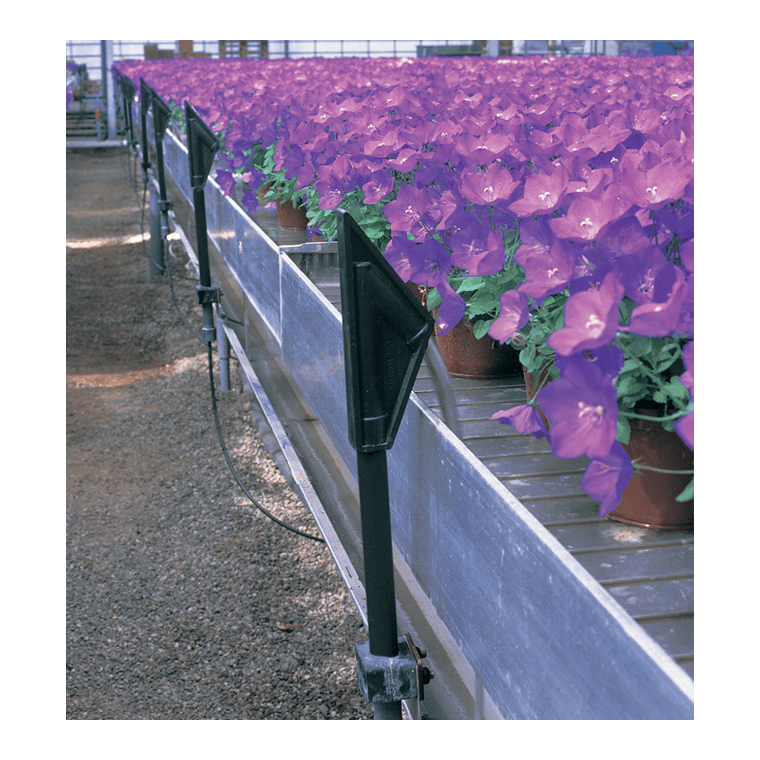

Filling is done by the triangle valve, which delivers water in a splash-free jet so the filling does not disturb the bench. A special bracket fixes it to the bench drain edge. The valve and bracket are shaped so that as a crane lifts the bench, the valve is moved aside rather than damaged, and the bench is left unharmed too. The valve is made in black nylon and comes in two sizes: the 8 x 6 mm version for 8 to 14 L/min and the 10.5 x 8 mm version for 12 to 20 L/min, each at a recommended 1.3 to 3.3 bar and supplied with a resistance tube.
Draining is by the HV 3 siphon valve. Once the siphon stops, a built-in final emptying construction lets the last water run out at about 0.2 L/min, which also helps where benches carry a lot of dirt. The siphon is adjustable in steps, so the water level on the bench can be set between 45 and 60 mm above the bottom of the sump. It fits a 26 to 30 mm hole with a 3/4 inch thread, weighs only 50 g and has a closing function.
The set is a natural fit for container nurseries, and it forms part of how we plan nursery irrigation. Sitetech specifies and installs it as main UK distributor for DGT by Senmatic, and we will help you choose the correct triangle valve size for your bench and pump.
Key capabilities
- Irrigation designed for crane- and conveyor-moved container benches
- Triangle valve fills in a splash-free jet
- Bracket lets the bench push the valve aside when lifted by crane
- Two triangle valve sizes: 8 to 14 L/min and 12 to 20 L/min
- HV 3 siphon valve for quick, efficient draining
- Built-in final emptying for the last of the water
- Drain level adjustable in steps
- Light black nylon valves
Technical specifications
| Triangle valve 8 x 6 mm: recommended capacity | 8 – 14 L/min |
|---|---|
| Triangle valve 10.5 x 8 mm: recommended capacity | 12 – 20 L/min |
| Triangle valve: recommended water pressure | 1.3 – 3.3 bar |
| Triangle valve: resistance tube | Ø 8 x 6 mm, 2 m (8 x 6 mm valve); Ø 10.5 x 8 mm, 1.5 m (10.5 x 8 mm valve) |
| Triangle valve: length (complete) | 650 mm |
| Triangle valve: weight (complete, with bracket) | Approx. 350 g |
| Triangle valve: material | Black nylon |
| HV 3 siphon valve: draining | 4 or 9 L/min |
| HV 3 siphon valve: final emptying | 0.2 L/min |
| HV 3 siphon valve: draining height (adjustable) | 45 – 60 mm above sump bottom |
| HV 3 siphon valve: mounting hole in sump | 26 – 30 mm |
| HV 3 siphon valve: mounting thread | 3/4 inch RG |
| HV 3 siphon valve: closing function | Yes |
| HV 3 siphon valve: material, weight, length | Black nylon, 50 g, 100 mm |
